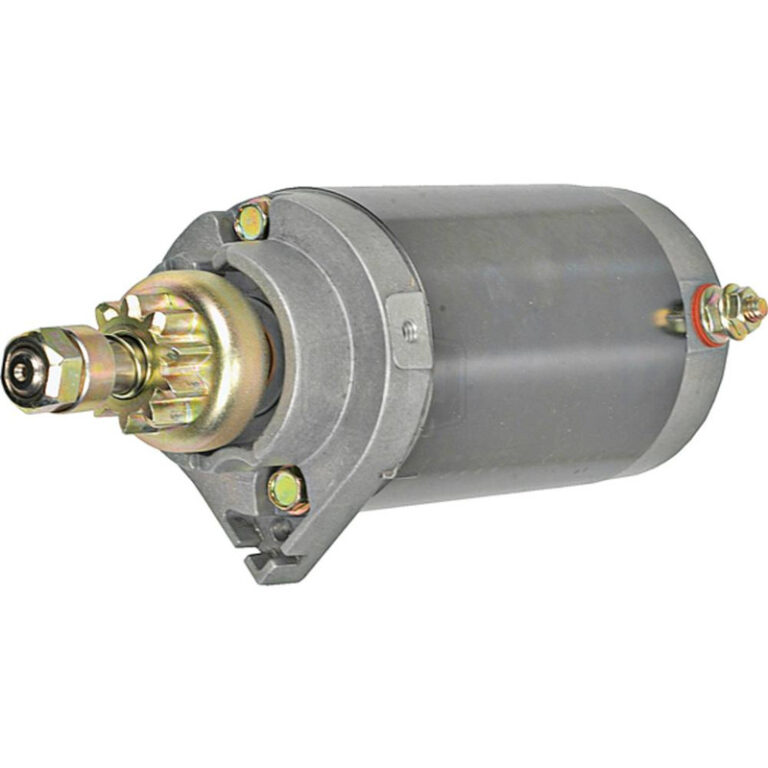

NEW Starter for Mariner & Mercury Marine Engines – Marine Outboard; 410-21035, 4820340, 4820340-M030SM, SM47764, SM48203; LESTER 5401

$159.99

Email
Categories: , ,

Specifications

Unit Type Starter
Part Type Permanent Magnet Direct Drive (PMDD)
VOLT 12
ROTATION DIRECTION Counter Clockwise
NUMBER OF TEETH 10
GEAR OD 1.264″/ 32.100mm
Add Info
  • 4.5mm Hole on Triangular Ear
  • 1/4-20 Threaded Hole on Side of Drive Cap
  • 4.118″ / 104.6mm Field Case Length

WRITE YOUR OWN REVIEW

We appreciate your feedback about our parts, services experience or anything which may help us to serve you better.
[testimonial_view id=”1″]

Part Number & Interchanges

 Manufacturer Name  Manufacturer Part #
ARROWHEAD SAB0013
J&N 410-21035
MERCURY MARIN E50-44369, 50-44369A1
SIERRA MARINE 18-5606
UNITED TECHNOLOGIES 4820340, 4820340-M030SM, SM47764, SM48203

Applications

YEAR MAKE MODEL ENGINE
1992 – 1997 MARINER 50ELHPTO 51.8ci – 50 HP
1986 – 1990 MARINER 50ELO 49.8ci – 50 HP
1991 – 1997 MARINER 50ELO 51.8ci – 50 HP
1986 – 1990 MARINER 50ELPTO 49.8ci – 50 HP
1991 – 1997 MARINER 50ELPTO 51.8ci – 50 HP
1992 – 1994 MARINER 50EO 51.8ci – 50 HP
1984 – 1985 MARINER 60EL 49.8ci – 60 HP
1992 – 1997 MARINER 60ELHPTO 51.8ci – 60 HP
1986 – 1990 MARINER 60ELO 49.8ci – 60 HP
1991 – 1997 MARINER 60ELO 51.8ci – 60 HP
1984 – 1985 MARINER 60ELPT 49.8ci – 60 HP
1995 – 1997 MARINER 60ELPTO Big Foot 51.8ci – 60 HP
1986 – 1990 MARINER 60ELPTO 49.8ci – 60 HP
1991 – 1997 MARINER 60ELPTO 51.8ci – 60 HP
1995 – 1997 MARINER 60EO Jet 45 51.8ci – 60 HP
1992 – 1997 MARINER 60EO 51.8ci – 60 HP
All MERCURY MARINE 45.0HP / Jet – SN 0D000750 Thru 0G290584 45.0HP, Jet
All MERCURY MARINE 45.0HP / Jet – SN 0G290585 Thru 0G589999 45.0HP, Jet
All MERCURY MARINE 50.0HP / 3cyl – SN 0B122930 Thru 0D000749 50.0HP, 3 Cylinder
All MERCURY MARINE 50.0HP / 3cyl – SN 0D000750 Thru 0G290584 50.0HP, 3 Cylinder
All MERCURY MARINE 50.0HP / 3cyl – SN 0G290585 Thru 0G589999 50.0HP, 3 Cylinder
All MERCURY MARINE 50.0HP / 3cyl – SN 6428681 Thru 0B122929 50.0HP, 3 Cylinder
All MERCURY MARINE 60.0HP / 3cyl – SN 0B122930 Thru 0D000749 60.0HP, 3 Cylinder
All MERCURY MARINE 60.0HP / 3cyl – SN 0D000750 Thru 0G290584 60.0HP, 3 Cylinder
All MERCURY MARINE 60.0HP / 3cyl – SN 0G290585 Thru 0G589999 60.0HP, 3 Cylinder
All MERCURY MARINE 60.0HP / 3cyl – SN 6428681 Thru 0B122929 60.0HP, 3 Cylinder
1992 – 1997 MERCURY MARINE 50ELHPTO 2-Stroke 50HP
1986 MERCURY MARINE 50ELO 2-Stroke 50HP
1987 MERCURY MARINE 50ELO 2-Stroke 50HP
1988 MERCURY MARINE 50ELO 2-Stroke 50HP
1989 MERCURY MARINE 50ELO 2-Stroke 50HP
1992 MERCURY MARINE 50ELO 2-Stroke 50HP
1993 MERCURY MARINE 50ELO 2-Stroke 50HP
1994 MERCURY MARINE 50ELO 2-Stroke 50HP
1995 MERCURY MARINE 50ELO 2-Stroke 50HP
1996 MERCURY MARINE 50ELO 2-Stroke 50HP
1997 MERCURY MARINE 50ELO 2-Stroke 50HP
1986 – 1997 MERCURY MARINE 50ELPTO 2-Stroke 50HP
1986 – 1994 MERCURY MARINE 50EO 2-Stroke 50HP
1984 MERCURY MARINE 60E 2-Stroke 60HP
1984 – 1985 MERCURY MARINE 60EL 2-Stroke 60HP
1992 – 1997 MERCURY MARINE 60ELHPTO 2-Stroke 60HP
1986 – 1997 MERCURY MARINE 60ELO 2-Stroke 60HP
1984 – 1985 MERCURY MARINE 60ELPT 2-Stroke 60HP
1986 – 1997 MERCURY MARINE 60ELPTO 2-Stroke 60HP
1995 – 1997 MERCURY MARINE 60ELPTO Big Foot 2-Stroke 60HP
1987 MERCURY MARINE 60EO 2-Stroke 45HP
1992 – 1997 MERCURY MARINE 60EO 2-Stroke 60HP
1994 – 1997 MERCURY MARINE 60EO Jet 45HP
