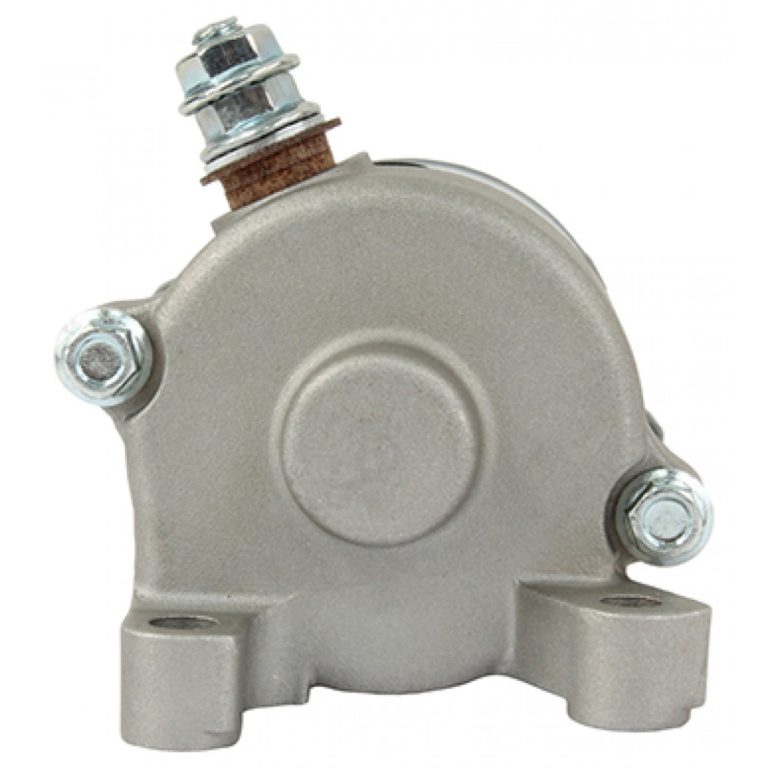

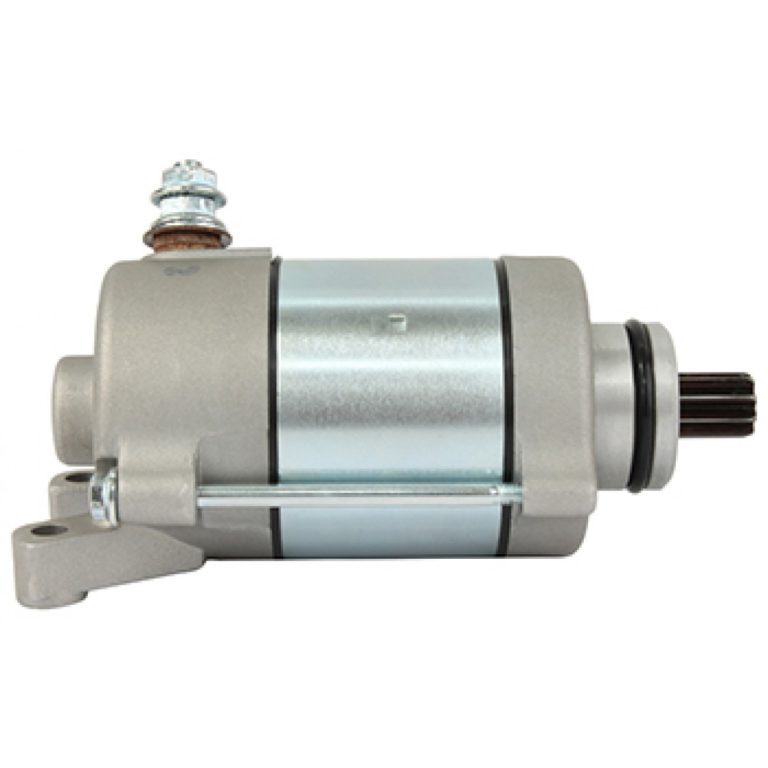

NEW Starter for HONDA CRF450X Dirt Bike; 410-54202, 31200MEY671; LESTER 18852

$209.99

Email
Categories: ,

Specifications

UNIT Starter
ELECTRIC STARTER TYPE Permanent Magnet Direct Drive (PMDD)
ROTATION DIRECTION Clockwise
VOLT 12
NUMBER OF TEETH 9
GEAR OD 0.457″
GEAR OD 11.600mm
LENGTH 3.807″
LENGTH 96.700 mm
MOUNT HOLE ID 1 7.300mm
MOUNT HOLE 1 TYPE Unthreaded
MOUNT HOLE 2 TYPE Unthreaded
REGISTRY OD 1.165″
REGISTRY OD 29.600mm
MOUNTING EAR DISTANCE 1 1.713″
MOUNTING EAR DISTANCE 1 43.500mm
WARRANTY 1 Year
M6-1.0 Threaded B+ Connection

Part Number & Interchanges

Manufacturer Name Manufacturer Part #
ARROWHEAD SMU0373
HI LEVEL STH0373
HONDA 31200MEY671
LESTER 18852

Part fit

Year Make Model Engine
Year Make Model Engine
2005 - 2015 HONDA CRF450X 449cc
2017 HONDA CRF450X 449cc
